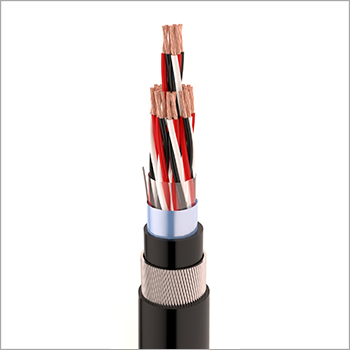

| Type 4. Multi-Triad, Overall Shield |
| |
|
|
|
| Standard |
|
|
|
| BS EN 50288-7, HD 383, BS EN 50290, BS EN 50288-1 |
 |
|
| Conductor |
|
Stranded (7 strands) Annealed Bare or Tinned Copper |
|
| |
|
As per IS 383 |
|
|
|
| Insulation |
|
PVC/ XLPE |
|
|
|
| Color Code |
|
Black - White - Red |
|
| |
|
With number printing on one core of each pair |
|
|
|
| Stranding |
|
Three cores twisted together to form a pair |
|
|
|
| Screening (Overall) |
|
Aluminum/ Mylar Tape + ATC Drain wire |
|
|
|
| Inner Sheath |
|
PVC ST 2 As per BS EN 50290
(LSZH also available) |
|
|
|
| Armouring (Optional) |
|
SWA / Steel Strip |
|
|
|
| Outer Sheath |
|
PVC ST2 As per BS EN 50290
(LSZH also available) |
|
|
|
| Outer Sheath Color |
|
Black
(Other colors available on request) |
|
|
|
| |
|
|
|
| |
|
|
|
