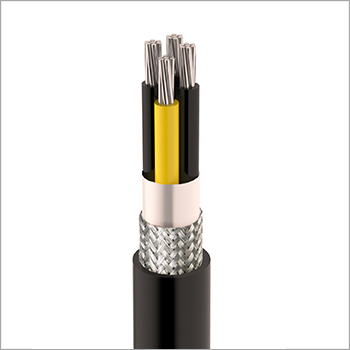

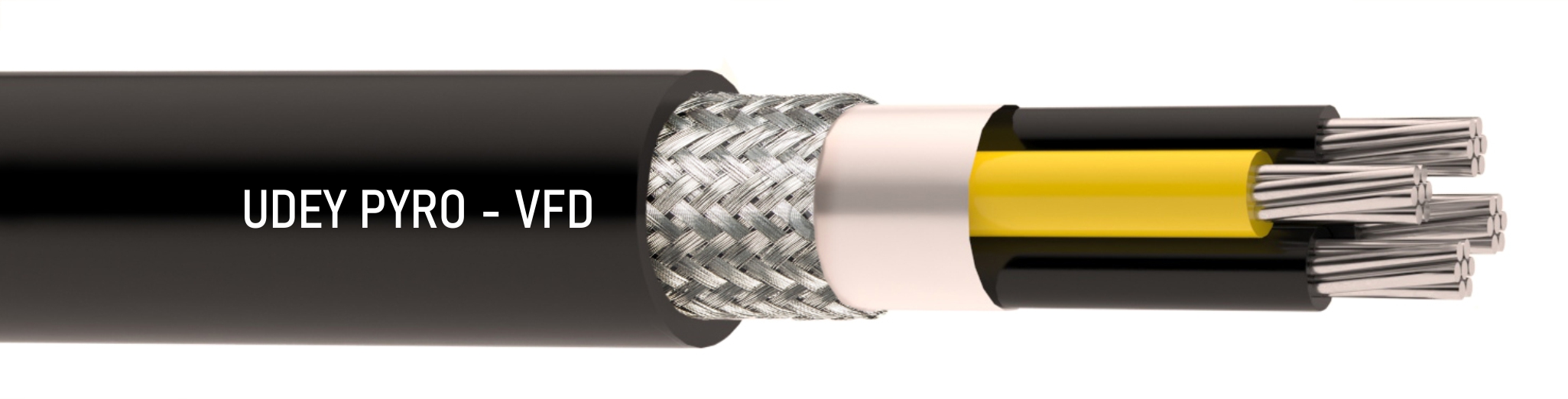

| VFD Cable (Al-ATC Shield |
| |
|
|
|
| Standard |
|
IEC 60332-1, IEC 60811-2, BS EN 60228 |
|
 |
|
| Conductor |
|
Fine bare copper strands
As per VDE – 0295 Class – 5
IEC 60228 Cl – 5 |
|
|
|
| Insulation |
|
XLPE |
|
|
|
| Color Code |
|
Grey - Brown - Black - Green/Yellow (4 Core) |
|
| As per VDE 093 308 |
|
Grey - Brown - Black (3 Core) |
|
|
|
| Color Code |
|
Red - Yellow - Blue - Black (4 Core) |
|
| As per IS 1554 (Optiona) |
|
Red - Yellow - Blue (3 Core) |
|
|
|
| Screening |
|
AL-Foil (Aluminium Foil)
100% coverage + 20% overlap |
|
|
|
| Braid |
|
Tinned Copper Wire Braid
85% coverage |
|
|
|
| Outer Sheath |
|
PVC (LSZH also available) |
|
|
|
| Outer Sheath Color |
|
Black
(Other colors available on request) |
|
|
|
