The communication and information revolution has provided households and organizations with unprecedented access to CATV, the Internet, multimedia and telephony services.
|
| |
|
Udey Pyro coaxial cables are the forefront of delivery of these services, ensuring high speed, high capacity and reliability. Udey Pyro’s cable designs of today are more than prepared to meet the demands of the future. |
| |
|
|
| |
|
GAS INJECTED FOAM COAXIAL CABLES |
| |
|

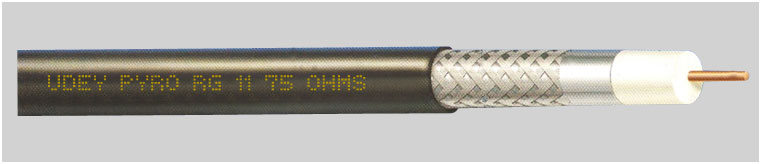

The centre conductor is made of solid electrolytic grade 99.97 pure copper to ensure better signal transmission. The conductor is insulated with foam dielectric made of polyethylene. The double screen of special composite type bonded aluminium foil and special grade aluminium alloy braiding of 60% coverage ensure low loss in signal quality, additional mechanical strength and resistance to oxide formation in tropical weather conditions. The specially formulated PVC compound used in the jacketing is UV and abrasion resistant. |
| |
|
|
| |
|
|
| |
|
|
CABLE TYPE
|
PARAMETERS |
RG 11F |
RG 6F |
RG 59F |
CENTER CONDUCTOR
Nom.Dia. (mm) |
Solid bare copper
1.63 |
Solid bare copper
1.02 |
Solid bare copper
0.8 |
DIELECTRIC
Nom.Dia. (mm) |
Foam PE
7.11 |
Foam PE
4.57 |
Foam PE
3.55 |
OUTER CONDUCTOR |
|
|
|
1st Shield |
Al-Foil Bonded |
Al.Foil Bonded |
Al.Foil Bonded |
2nd Shield |
Al-Alloy Braiding |
Al.Alloy Braiding |
Al.Alloy Braiding |
Min.Coverage (%) |
60 |
60 |
60 |
Flooding Compound |
Jelly |
Jelly |
Jelly |
JACKET |
PVC Black |
PVC Black |
PVC Black |
Nom.Dia. (mm) |
10.3 |
7.25 |
6.2 |
BENDING RADIUS (mm) |
70 |
60 |
60 |
| |
|
|
| |
|
|
| |
|
|
|
 |
