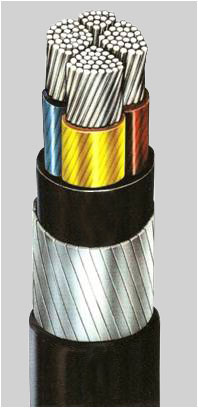

XLPE INSULATED HEAVY DUTY CABLES 650/1100 V |
| |
|
Advantages of “Udey Pyro” XLPE Cables |
| |
|
 |
Higher Current Rating |
 |
| |
|
|
Higher Short Circuit Rating (Approx. 1.2 times that of PVC) |
| |
|
|
Thermosetting in nature |
| |
|
|
Higher Insulation Resistance – 1000 times more than PVC cables |
| |
|
|
Low Dielectric Losses |
| |
|
|
Better Resistance to Chemicals and Corrosion |
| |
|
|
|
| |
|
Selection of Power Cables |
| |
|
Power cables are generally selected considering the application. However following
factors
are important for selection of suitable cable construction required to transport
electrical energy
from one end to other. |
| |
|
|
Maximum operating voltage |
| |
|
|
Insulation level |
| |
|
|
Frequency |
| |
|
|
Load to be carried |
| |
|
|
Possible overloading duration & magnitude |
| |
|
|
Route length and voltage drop |
| |
|
|
Mode of installation considering installation environment such as ambient & ground temperature. |
| |
|
|
Flame retardant properties |
| |
|
|
Plant safety requirements |
|
|
|
| |
|
Parameters Required Are As Under :-
|
| |
|
|
Voltage Grade : 650 / 1100 Volts |
|
| |
|
|
Standards : IS 7098 (Part-1)-1988, IEC-60502 & BS-5467/DIN |
|
| |
|
|
Number of Cores :Single, Two, Three, Three & Half or Four Cores |
|
| |
|
|
Conductor : Size, wherever applicable size of reduced natural conductor |
|
| |
|
|
Conductor Material : Copper / Aluminium |
|
| |
|
|
Type of Insulation : XLPE |
|
| |
|
|
Type of Inner Sheathing : PVC Wrapped/ PVC Extruded |
|
| |
|
|
Type of Armour : Unarmoured/ Strip Armoured/ Wire Armoured/ Tape Armoured |
|
| |
|
|
Type of Outer Sheath : PVC/ FR/ FRLS/ Zero halogen (LSZH) |
|
| |
|
|
|
|
| |
|
|
| |
|
|
| |
|
 |
